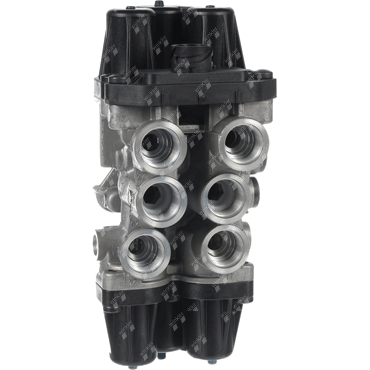

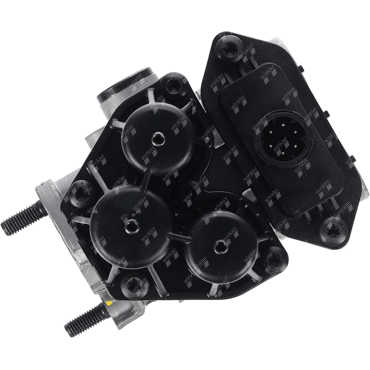

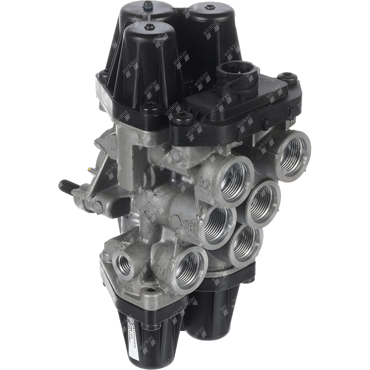

Brand
Wabco Closing pressure circuit 1 (bar)
7 Closing pressure circuit 2 (bar)
7 Closing pressure circuit 3 (bar)
4,5 Closing pressure circuit 4 (bar)
4,5 Connection 1 – power input
M 22x1,5 – Voss NG 12 Connection 21 – power output
M 22x1,5 – Voss NG 12 Connection 22 – power output
M 22x1.5 – Voss NG 12 Connection 23 – power output
M 22x1,5 – Voss NG 12 Connection 24 – power output
M 22x1,5 - Voss NG 12 Connection 25 – power output
M 22x1,5 - Voss NG 12 Connection 26 – power output
M 22x1,5 - Voss NG 12 Connection 27 – power output
M 12x1,5 Connection 28 – power output
M 12x1,5 Connection 6 – electrical control connection
DIN bayonet Deposit item
no Function circuit 1
with backflowwithout bypass
Function circuit 2
with backflowwithout bypass
Function circuit 3
without bypasswithout backflow
Function circuit 4
without bypasswithout backflow
Max. operating pressure (bar)
13 Opening pressure circle 1 (bar)
9 Opening pressure circle 2 (bar)
9 Opening pressure circle 3 (bar)
7,5 Opening pressure circle 4 (bar)
7,5 Pressure sensor
circuit 1circuit 2
Ref. no.
Wabco 934 705 003 0 Reman
no Weight (kg)
1,721
