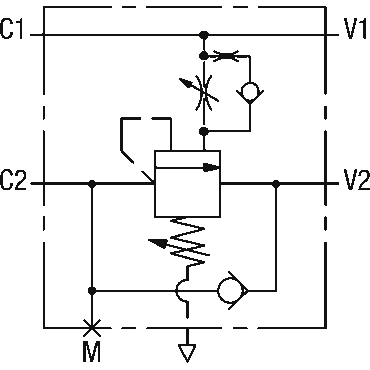

The load holding valve or lowering brake valve prevents loads on cylinders or motors from dropping uncontrollably. To do this, they are preloaded with a pressure setting that is higher than the largest possible load. A hydraulic piston opens the valve to achieve the desired lowering speed.
Activation ratio
4:1 Brand
other Connection consumer 1
1/2 inch internal thread Connection consumer 2
1/2 inch internal thread Connection pressure input 1 (inches)
1/2 internal thread Connection pressure input 2 (inches)
1/2 internal thread Height (mm)
60 Length (mm)
141 Material
steel Max. flow rate (l/min)
150 Max. operating pressure (bar)
270 Measuring connection
G 1/4 inch Surface
Cr6-free galvanized Version
single Weight (kg)
2,5 Width (mm)
40
