Item no. 623 006 638 00

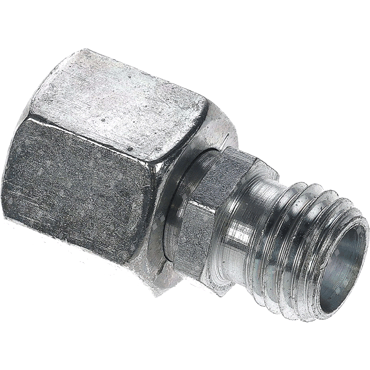

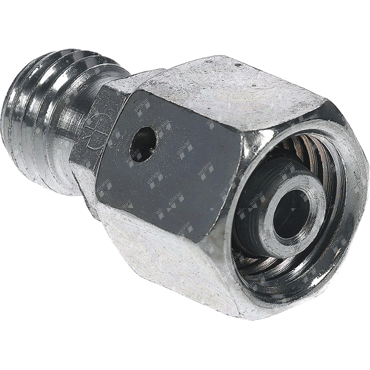

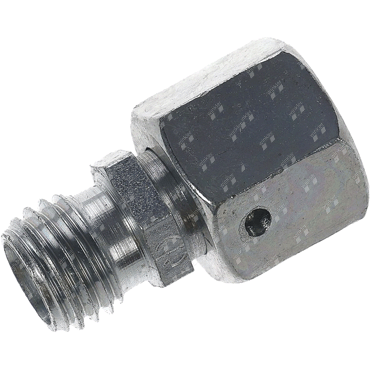

Reducing fitting, 8 L/6 L, steel

Tube AD series

8 L/6 L 8 S/6 S 10 S/8 S 10 L/8 L 10 S/6 S 10 L/6 L 12 S/10 S 12 S/6 S 12 L/8 L 12 L/6 L 12 S/8 S 12 L/10 L 14 S/6 S 14 S/8 S 14 S/12 S 14 S/10 S 15 L/10 L 15 L/8 L 15 L/12 L 15 L/6 L 16 S/10 S 16 S/14 S 16 S/12 S 16 S/15 L 16 S/8 S 16 S/6 S 18 L/15 L 18 L/12 L 18 L/16 S 18 L/6 L 18 L/8 L 18 L/10 L 20 S/18 L 20 S/10 S 20 S/15 L 20 S/6 S 20 S/14 S 20 S/8 S 20 S/12 S 20 S/16 S 22 L/12 L 22 L/8 L 22 L/20 S 22 L/16 S 22 L/10 L 22 L/6 L 22 L/15 L 22 L/18 L 25 S/18 L 25 S/6 S 25 S/10 S 25 S/14 S 25 S/12 S 25 S/22 L 25 S/20 S 25 S/16 S 25 S/8 S 28 L/15 L 28 L/8 L 28 L/25 S 28 L/18 L 28 L/12 L 28 L/20 S 28 L/6 L 28 L/22 L 28 L/16 S 28 L/10 L 30 S/20 S 30 S/16 S 30 S/25 S 30 S/8 S 30 S/6 S 30 S/10 S 30 S/22 L 30 S/14 S 30 S/28 L 30 S/12 S 35 L/28 L 35 L/8 L 35 L/15 L 35 L/22 L 35 L/6 L 35 L/12 L 35 L/18 L 35 L/25 S 35 L/10 L 35 L/30 S 38 S/10 S 38 S/8 S 38 S/20 S 38 S/12 S 38 S/30 S 38 S/28 L 38 S/6 S 38 S/16 S 38 S/35 L 38 S/25 S 42 L/10 L 42 L/38 S 42 L/30 S 42 L/28 L 42 L/22 L 42 L/35 L 42 L/18 L 42 L/15 L 42 L/12 L

Internal thread A metric

M 14x1,5 M 16x1,5 M 18x1,5 M 20x1,5 M 22x1,5 M 24x1,5 M 26x1,5 M 30x2 M 36x2 M 42x2 M 45x2 M 52x2

Thread external B metric

M 12x1,5 M 14x1,5 M 16x1,5 M 18x1,5 M 20x1,5 M 22x1,5 M 24x1,5 M 26x1,5 M 30x2 M 36x2 M 42x2 M 45x2 M 52x2

Brand

items

Product details
Part of

Brand

other

For ø pipe A (mm)

8

For ø pipe B (mm)

6

Internal thread A metric

M 14x1,5

Length L (mm)

30,5

Material

steel

Operating pressure (bar)

315

Production series

light

Sealing A

24° sealing cone with O-ring NBR

Sealing B

24° inner cone

Standard DIN

2353

Standard ISO

8434-1
8434-4

Surface

Cr6-free galvanized

Thread external B metric

M 12x1,5

Tube AD series

8 L/6 L

Type

RED

Weight (kg)

0,038

Width across flats body ES (mm)

12

Reference numbers are only to be used for comparison
