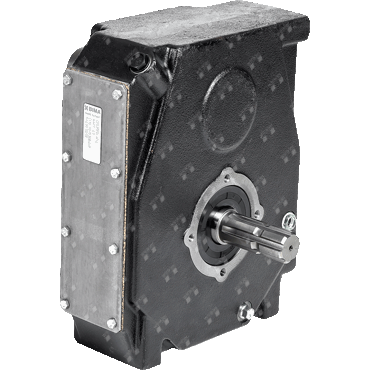

gearbox for reversing the direction of rotation for example, when using rear-mounted implements in front-mounted applications It should be noted that a torque arm must be attached to the gearbox. The gearbox is delivered without oil filling.
Brand
Bondioli & Pavesi Depth (mm)
132 Height (mm)
348 Lubricant filling
no Power (kW)
88 Recommended fill quantity (l)
2,5 Reduction/conversion ratio
1:1 Revolution input (rpm)
1000 Revolution output (rpm)
1000 Torque input (Nm)
860 Torque output (Nm)
840 Wave profile drive (inches)
1 3/8 inch 6 teeth DIN 9611A Wave profile output (inches)
1 3/8 inch 6 teeth DIN 9611A Weight (kg)
34 Width (mm)
290
