Item no. 980 044 294 00

Tire iron, 4columns, 5.5 t

items
items
Back to search results
logoproduct image
Item no. 980 044 294 00

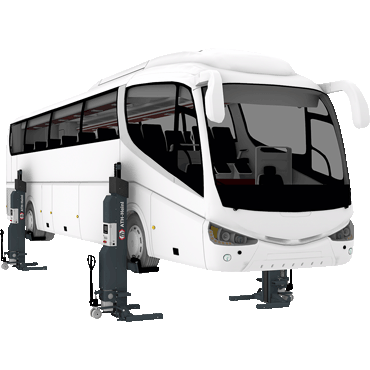

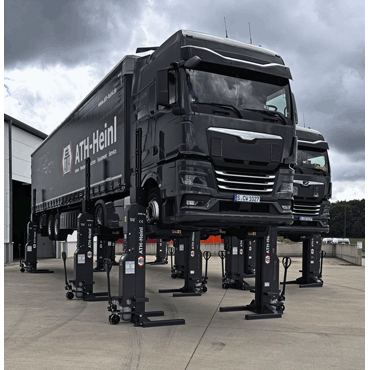

Tire iron, 4columns, 5.5 t

items

electro-hydraulic wheel gripper system with battery operation and wireless control. control unit including unit cover on each column for flexible use. master control provides all operating information on each column and can be expanded to up to 16 columns. integrated quick charger for each column, enables charging during use. mobile kit and forklift attachment on the columns enable faster position changes. safety control: hydraulic shut-off valve, electronic synchronization monitoring and electromagnetic safety catches. safety Lock: control for placing the load in the safety notches. multifunctional mount via variable wheel fork with individual adjustment options..

Brand
ATH
Hub system
electro-hydraulic
Lift time (s)
50
Load-bearing capacity
5.5 t
Number of columns
4
Power motor
2.2 kW
Stroke (mm)
1750
Weight (kg)
3150
Reference numbers are only to be used for comparison
