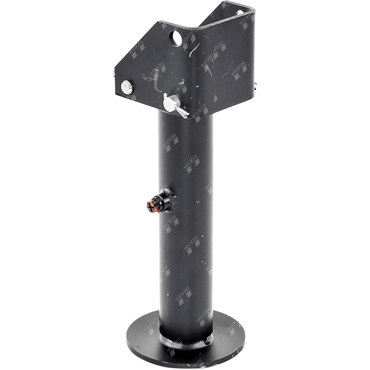

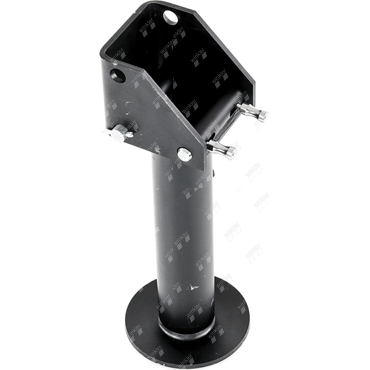

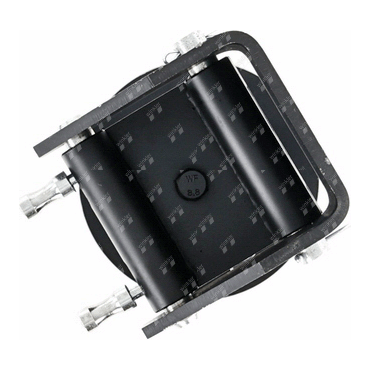

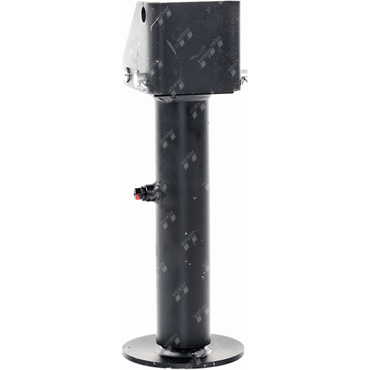

stabilizer cylinder single-acting with return spring
scope of delivery: cylinder including retaining plate
Brand
other Compression force by operating pressure (t)
6 Installation dimension (mm)
405 Oil connection bottom side (inches)
3/8 internal thread Operating pressure (bar)
200 Stroke (mm)
250 Surface
painted Surface piston rod
nitrided Weight (kg)
18 ø casing tube (mm)
85 ø Rod (mm)
65 ø support plate (mm)
160
