seal set for double-acting pistons in presses, control cylinders, support and actuating cylinders for mobile hydraulics

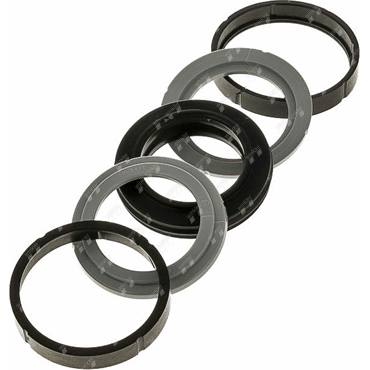

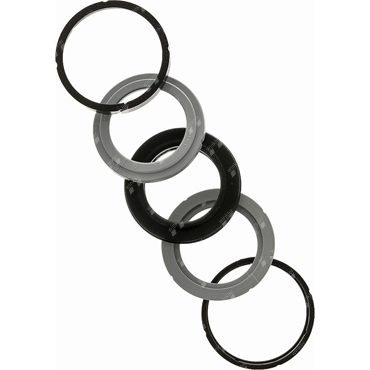

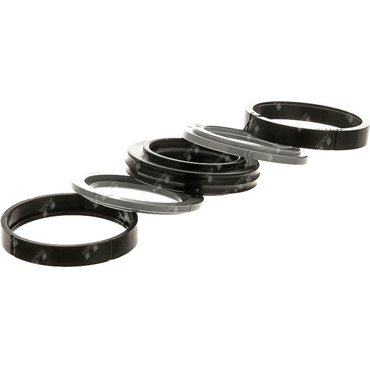

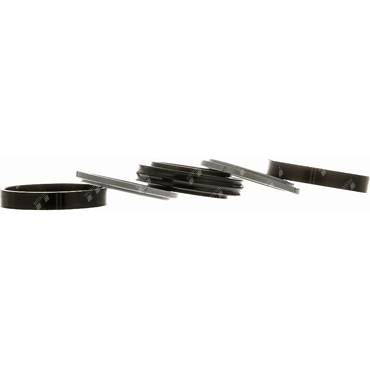

The double-acting piston seal kit consists of an elastomer seal part, 2x anti-extrusion and 2x angular guide rings.
Brand
other Height (mm)
18,4 Material
NBR Max. pressure (bar)
400 Temperature range from (°C)
-35 Temperature range to (°C)
100 Weight (kg)
0,003 Width (mm)
31,2 ø external D1 (mm)
50 ø internal (mm)
34
