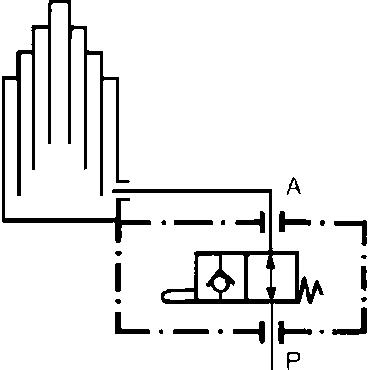

The limiting valve has the task of limiting the stroke of the cylinder during the tilting process. The gimbal ring is used to press the respective release screw when the tilt angle is reached. The exact setting must be made when placing the system in inital operation.
Brand
Neumeister Height (mm)
40 Internal thread A metric
M 22x1,5 Internal thread B metric
M 22x1,5 Length (mm)
80 Material
steel Max. flow rate (l/min)
60 Max. operating pressure (bar)
275 Suitable for Kardan type
VI1 Weight (kg)
4 Width (mm)
80
