Further details for you
with Viton sealing
Assembly flange drive
2-hole 100 mm Brand
Parker Displacement (cm³/r)
4,9 Leakage oil connection
1/4 inch internal thread Material housing
cast steel Max. pressure (bar)
420 Max. revolution (rpm)
12800 Max. torque (Nm)
25 Oil connection A
1/2 inch internal thread Oil connection B
1/2 inch internal thread Operating pressure (bar)
350 Power (kW)
13 Specification drive
shaft cylindrical (metric) with feather key Type

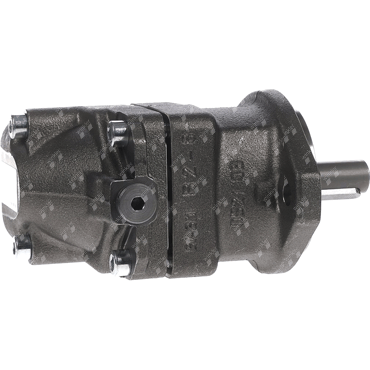

F11-005 Weight (kg)
4,8 ø shaft/hub (mm)
18
