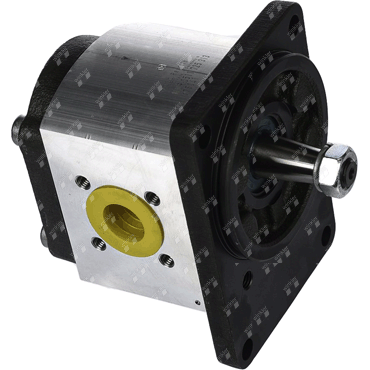

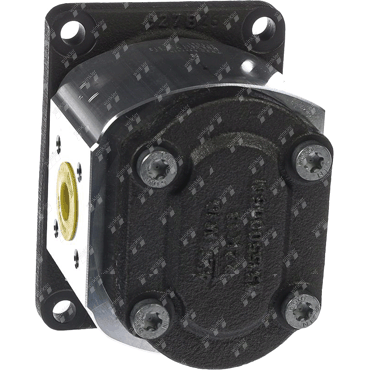

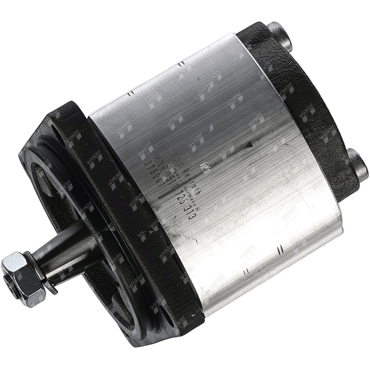

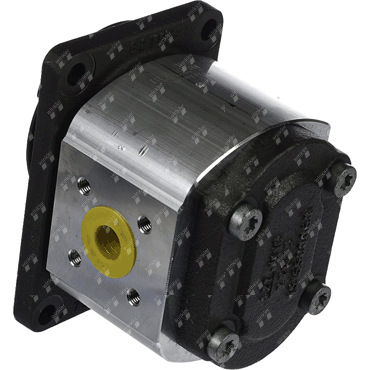

Assembly flange drive
4-hole 132x88.5 mm M 10 Brand
Bosch-Rexroth Center ø flange (mm)
100 Direction of rotation
left Displacement (cm³/r)
25 Manufactured size
N Material housing
aluminum Max. pressure (bar)
240 Max. revolution (rpm)
3000 Mounting oil connection A
hole circle 55 mm M 8 Mounting oil connection B
hole circle 55 mm M 8 Operating pressure (bar)
210 Specification drive
shaft conical 1:5 Usage
fan drive Weight (kg)
5,9 ø oil connection A (mm)
18 ø oil connection B (mm)
26 ø shaft/hub (mm)
20
