Further details for you

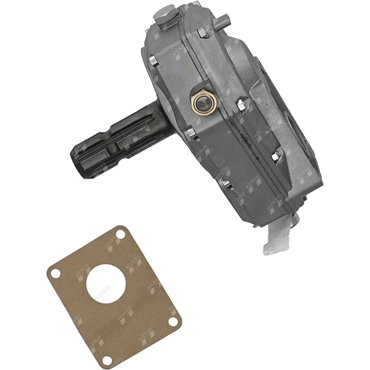

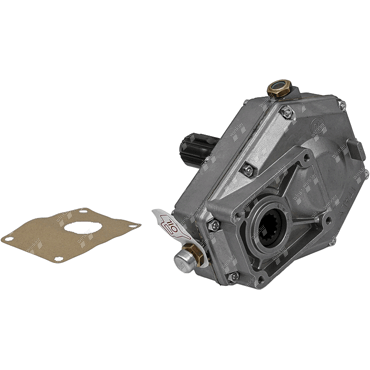

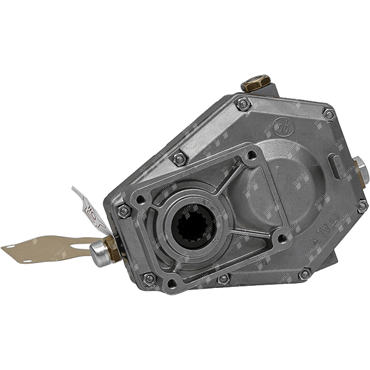

gearbox including seal for mounting a gear pump for operation on a power take-off shaft
Assembly flange drive output
4-hole 71.5x96.2 mm M 8 Brand
other Gear ratio
1:3,5 Height (mm)
191 Info 1
oil amount (l): 0.35 Length (mm)
219 Manufactured size
AG 2 Material housing
die-cast aluminum Max. torque (Nm)
186 Specification drive input
shaft 1 3/8 inch Weight (kg)
5,55 Width (mm)
150 ø shaft/hub outlet (mm)
14,4-17
