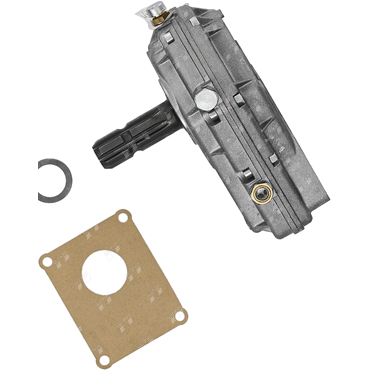

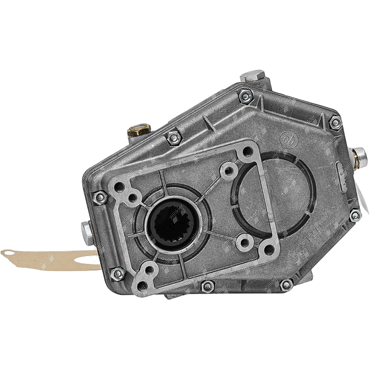

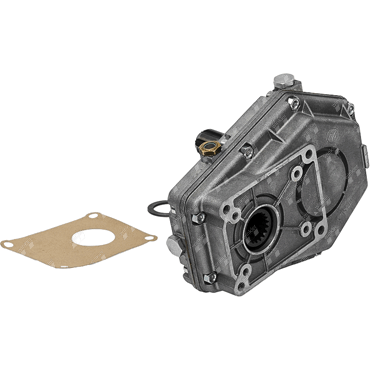

gearbox including seal for mounting a gear pump for operation on a power take-off shaft
Assembly flange drive output
4-hole 98.4x128.1 mm M 10 Brand
other Gear ratio
1:3,5 Height (mm)
191 Info 1
oil amount (l): 0.35 Length (mm)
289,5 Manufactured size
AG 3 Material housing
die-cast aluminum Max. torque (Nm)
460 Specification drive input
shaft 1 3/8 inch Weight (kg)
8,14 Width (mm)
200 ø shaft/hub outlet (mm)
13,5-22,5
