The control piston is equipped with a fine control groove. This enables precise control even with a small slider valve opening.
Brand
other Connection pressure input (inches)
G 3/8 internal thread Connection pressure output A (inches)
G 3/8 internal thread Connection pressure output B (inches)
G 3/8 internal thread Connection return flow (inches)
G 3/8 internal thread Function 1
single action Max. flow rate (l/min)
45 Max. operating pressure (bar)
350 Number of functional elements
1 Pressure limiting valve (bar)
180 standard Pressure oil pipe

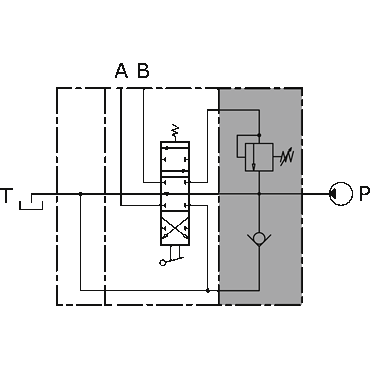

upgradable Status zero position
P open at T A closed Switch position 1
spring centered Weight (kg)
2,734
