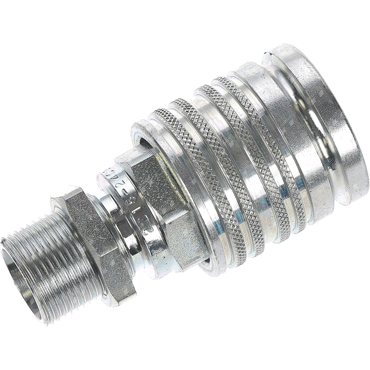

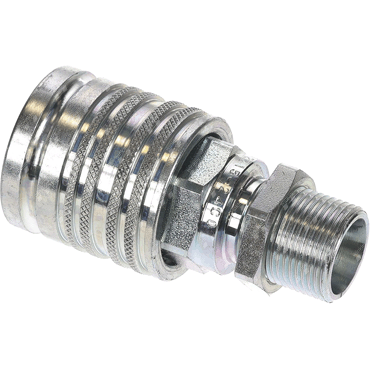

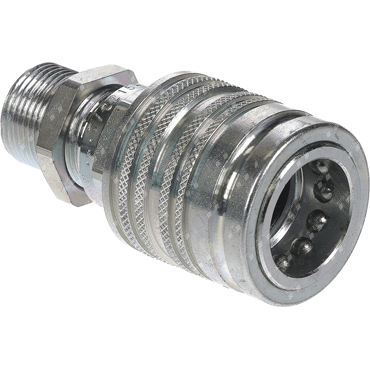

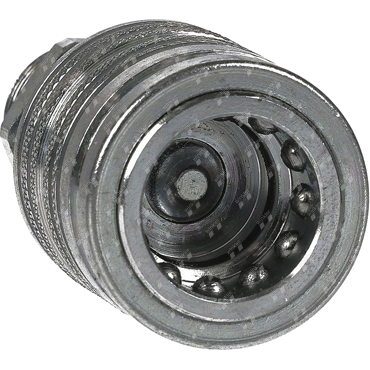

push-pull coupling for agricultural applications The muff of this series is characterized by a double-acting sleeve that allows push-pull actuation when installed for panel mounting with hose connection.
Brand
Faster Connection type
bulkhead thread short Coupling situation
cannot be coupled under residual pressure Coupling type
taper sealing For ø pipe (mm)
15 Manufactured size
AG 3 Material
steel Nominal diameter (mm)
12,5 Operating pressure (bar)
250 Production series
light Safety tear-off function
yes Sealing
24° inner cone Surface
Cr6-free galvanized System compatibility
ISO 7241-1-A Thread external metric
M 22x1,5 Total length (mm)
77,3 Tube AD series
15 L Type
CPV Weight (kg)
0,36 Width across flats body (mm)
27 ø external muff (mm)
38
