Further details for you

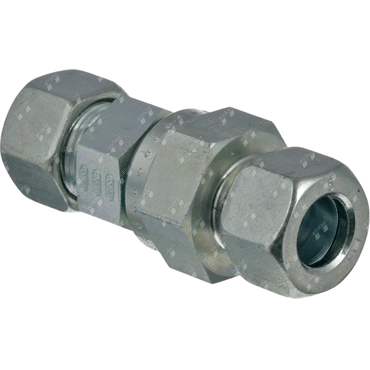

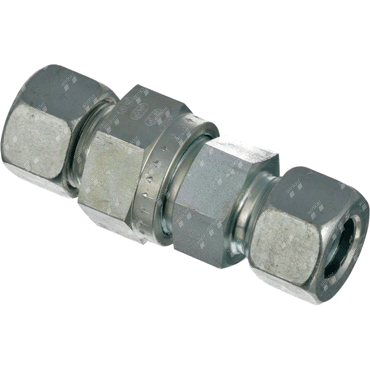

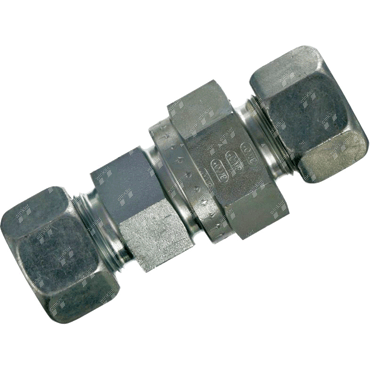

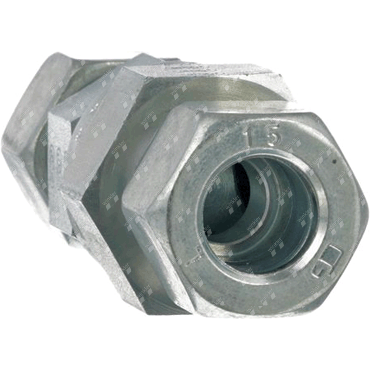

scope of delivery for complete check valve: union, cutting ring and union nuts
Pay attention to the direction of flow (arrow) during assembly!
Brand
other For ø pipe A (mm)
15 For ø pipe B (mm)
15 Length L (mm)
77,5 Material
steel Max. operating pressure (bar)
400 Production series
light Standard DIN
2353 Standard ISO
8434-18434-4
Surface
Cr6-free galvanized Switching pressure (bar)
1 Thread external A metric
M 22x1,5 Thread external B metric
M 22x1,5 Tube AD series
15 L Type
RHD Weight (kg)
0,25 Width across flats body ES (mm)
32 Width across flats nut CH1 (mm)
27 Width across flats nut CH2 (mm)
27
