Further details for you

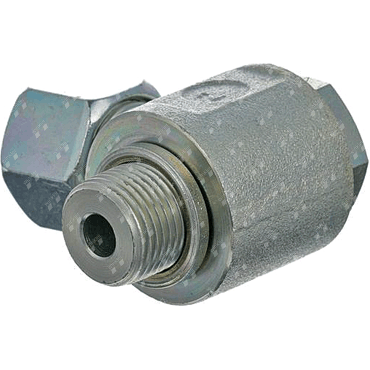

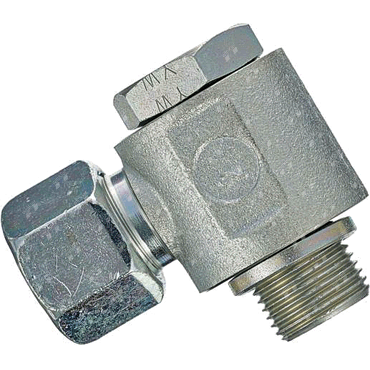

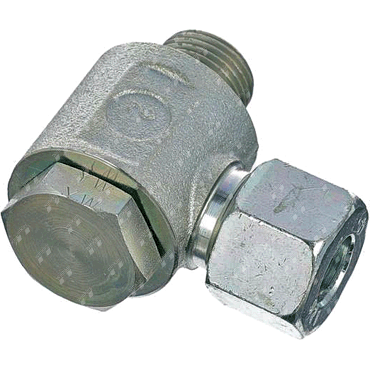

delivery with cutting ring, union nut and edge sealing ring
Angle (°)
90 Brand
other For ø pipe B (mm)
12 Length L (mm)
33 Material
steel Operating pressure (bar)
315 Production series
light Sealing screw in
sealing edge with metal sealing ring Standard DIN
2353 Standard ISO
8434-18434-4
Surface
Cr6-free galvanized Thread external A metric
M 18x1,5 Thread external B metric
M 18x1,5 Tube AD series
12 L Type
WHK-M Weight (kg)
0,26 Width across flats body ES (mm)
30 Width across flats hollow screw CH5 (mm)
27 Width across flats nut CH2 (mm)
22
