Further details for you

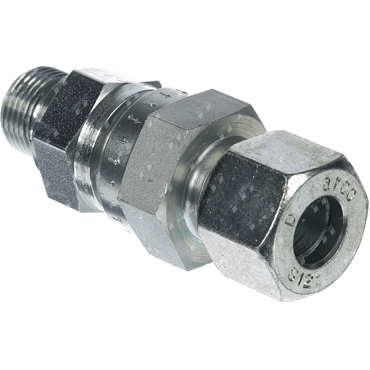

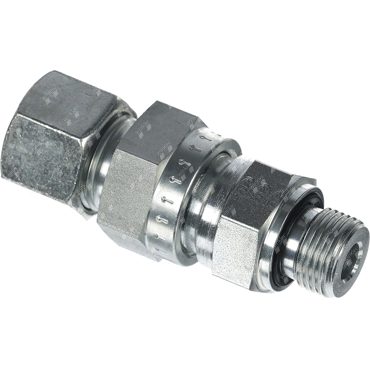

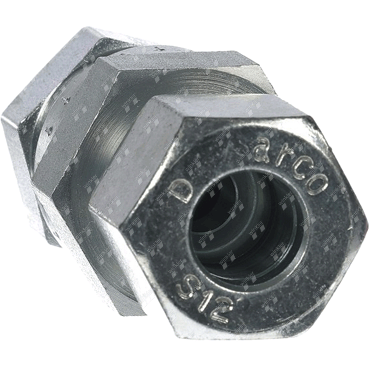

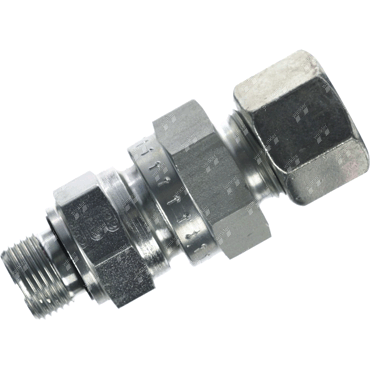

scope of delivery for complete check valve: union, cutting ring and union nuts
Brand
other Connecting thread
M 20x1.5 Direction of flow
from screw-in plug For ø pipe (mm)
12 Integral thread
G 3/8 Length L (mm)
57 Material
steel Max. operating pressure (bar)
400 Production series
heavy Sealing screw in
seal Standard DIN
2353 Standard ISO
8434-18434-4
Surface
Cr6-free galvanized Tube AD series
12 S Type
RHV-R-ED Weight (kg)
0,191 Width across flats body ES (mm)
2724
Width across flats nut CH1 (mm)
24
