Back to search results
Further details for you

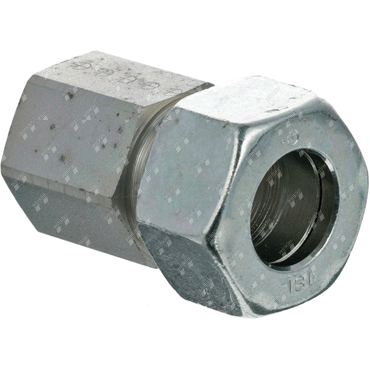

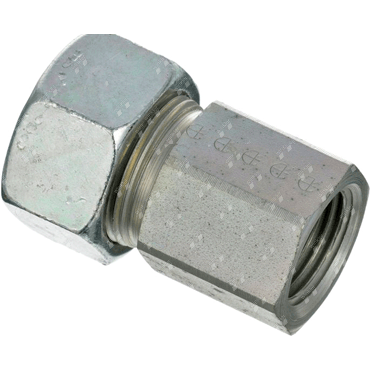

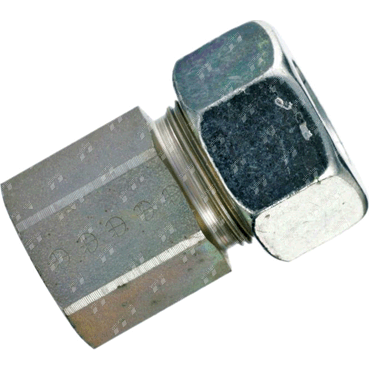

scope of delivery for complete screw connection: union, cutting ring and union nut
Brand
other For ø pipe B (mm)
18 Length L (mm)
47 Material
steel Operating pressure (bar)
315 Production series
light Sealing piping part
24° inner cone Sealing unscrewing
flat sealing Standard DIN
2353 Standard ISO
8434-18434-4
Surface
Cr6-free galvanized Thread external B metric
M 26x1,5 Thread internal A (inches)
G 1/2 Tube AD series
18 L Type
GAI-R Weight (kg)
0,15 Width across flats body ES (mm)
27 Width across flats nut CH1 (mm)
27
