Armatures series
B Brand
Intertraco Form connection
straight union nut Info 1

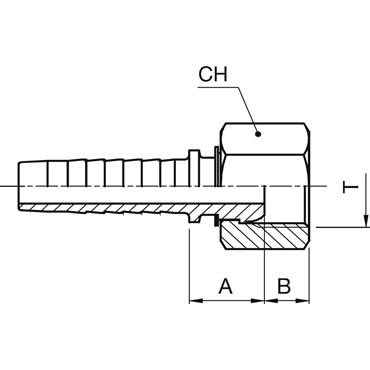

observe pressure control DIN 20078 Length A (mm)
23,5 Length B (mm)
5 Nominal diameter hose (inches)
3/4 Nominal diameter hose (mm)
19 Operating pressure (bar)
65 Sealing
60° sealing cone Size
12 Thread internal T
M 30 x 1.5 Type
DKM Weight (kg)
0,14 Width across flats nut CH (mm)
36
