Armatures series
B Brand
Intertraco Form connection
straight external thread Info 1

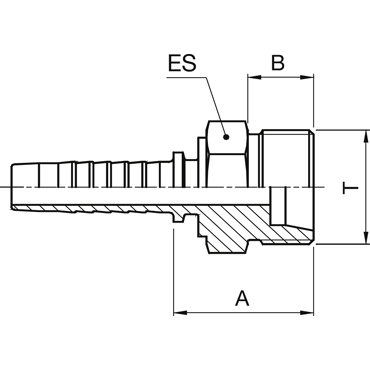

observe pressure control DIN 20078 Length A (mm)
22,5 Length B (mm)
10 Material
steel Nominal diameter hose (inches)
1/4 Nominal diameter hose (mm)
6 Operating pressure (bar)
420 Production series
light Sealing
24° inner cone Size
04 Surface
Cr6-free galvanized Thread external T
M 14x1,5 Tube AD series
8 L Type
CEL Usage hose type IT/Bridgestone
FlexIT 2TFlexIT SK216
FlexIT 3T
FlexIT SHP
FlexIT H4
B 4ST
B 4ST+
FlexIT T7
FlexIT T14
Weight (kg)
0,02 Width across flats body ES (mm)
14 ø tube (mm)
8
