Armatures series
B Brand
Intertraco Form connection
straight threaded union Info 1

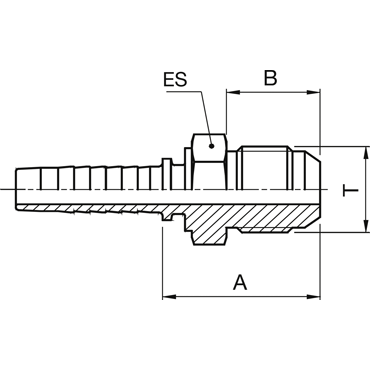

observe pressure control DIN 20078 Length A (mm)
26,5 Material
steel Nominal diameter hose (inches)
1/4 Nominal diameter hose (mm)
6 Operating pressure (bar)
450 Sealing
37° cone Size
04 Surface
Cr6-free galvanized Thread external T
JIC 1/2-20 Type
AGJ Usage hose type IT/Bridgestone
FlexIT 2TFlexIT SK216
FlexIT 3T
FlexIT SHP
FlexIT H4
B 4ST
B 4ST+
FlexIT T7
FlexIT T14
Weight (kg)
0,04 Width across flats body ES (mm)
14 Width body B (mm)
14
