Angle (°)
45 Armatures series
B Axle D (mm)
21 Brand
Intertraco Form connection
45° union nut crimped Info 1

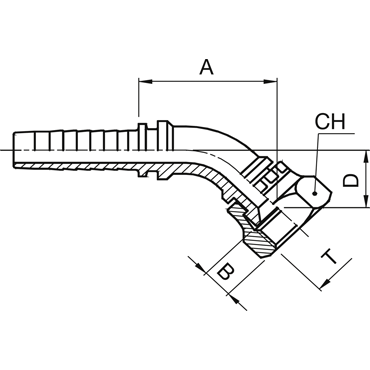

observe pressure control DIN 20078 Length A (mm)
60,5 Length B (mm)
14,3 Material
steel Nominal diameter hose (inches)
1/2 Nominal diameter hose (mm)
12 Operating pressure (bar)
420 Sealing
37° inner cone Size
08 Surface
Cr6-free galvanized Thread internal T
JIC 1 1/16-12 Type
DKJ Usage hose type IT/Bridgestone
FlexIT 2TFlexIT SK216
FlexIT 3T
FlexIT SHP
FlexIT H4
B 4ST
B 4ST+
FlexIT T7
FlexIT T14
Weight (kg)
0,18 Width across flats nut CH (mm)
32
