Angle (°)
45 Armatures series
I (internal and external skiving) Axle D (mm)
29,5 Brand
Intertraco Flange (inches)
3/4 Form connection
45° flange bushing Info 1

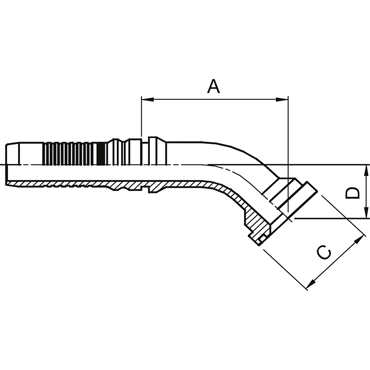

observe pressure control DIN 20078 Length A (mm)
69 Material
steel Nominal diameter hose (inches)
3/4 Nominal diameter hose (mm)
19 Operating pressure (bar)
420 Production series
heavy Sealing
flat sealing Size
12 Surface
Cr6-free galvanized Type
SFS Usage hose type IT/Bridgestone
FlexIT H4B 4ST
B 4ST+
B 6ST
FlexIT 6000
Weight (kg)
0,3 ø flange C (mm)
41,3
