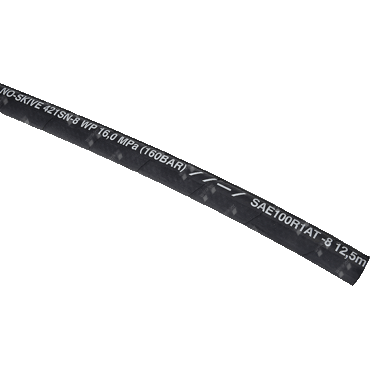

advanced chemical resistance due to nitrile (NBR) core technology with thin outer layer
Armatures series
48 Bending radius (mm)
130 Brand
Parker Burst pressure (bar)
720 Form surface
perforated Length per roll (m)
40 Material ceiling
synthetic rubber Material core
NBR Material pressure carrier
steel wire Max. operating pressure (bar)
180 Nominal diameter (inches)
3/8 Nominal diameter (mm)
10 Number of layers pressure carrier
1 Size
06 Standard
DIN EN 853SAE 100 R1 AT
System
Parker Temperature range from (°C)
-40 Temperature range to (°C)
100 Type hose
1SN Type pressure carrier
meshed Usable for
hydraulic oils Version
pressure hose Weight (kg)
0,313 ø external (mm)
17,4
