Armatures series
46 Brand
Parker Form connection

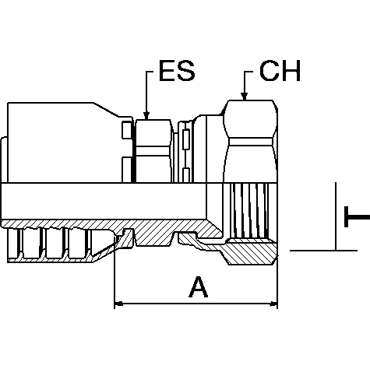

straight union nut Length A (mm)
32 Length B (mm)
58 Material
steel Nominal diameter hose (inches)
5/8 Nominal diameter hose (mm)
16 Operating pressure (bar)
345 Sealing
sealing cone 37°/SAE 45° Size
10 Surface
Cr6-free galvanized Thread internal T
JIC 3/4-16 Type
DKJ Usage hose type Parker
441461LT
462
462ST
463
492
492ST
692
692TWIN
Weight (kg)
0,1 Width across flats body ES (mm)
24 Width across flats nut CH (mm)
22
