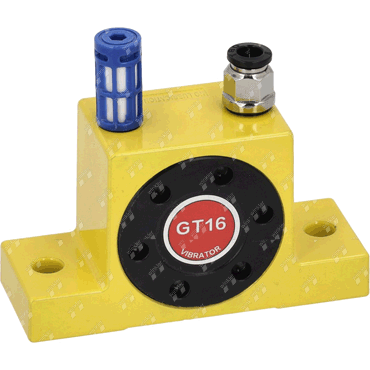

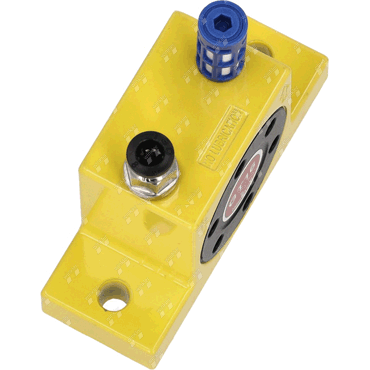

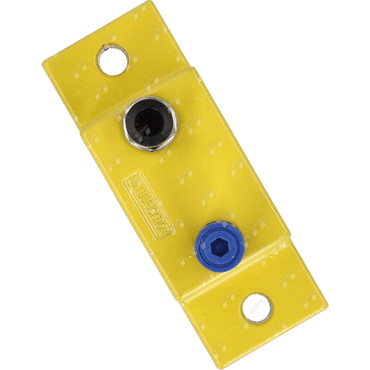

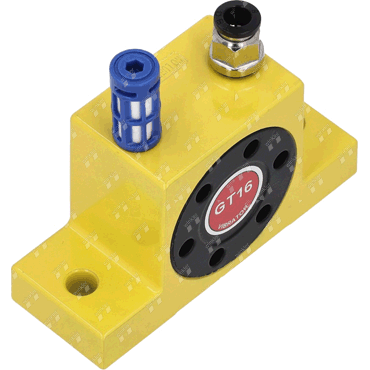

turbine vibrator for loosening the silo contents The vibrator does not require lubrication (maintenance-free) and can be used in all positions. Clean and oil-free compressed air (max. 6 bar) is required for long and trouble-free operation. Delivery includes hose nozzle for the compressed air connection and muffler. It is recommended to install a 20 μm oil filter upstream. The vibrator is designed to be explosion-proof.
Air flow (l/min)
210 Brand
Webac Centrifugal force (N)
2090 Height (mm)
65 Hole distance (mm)
90 Length (mm)
113 Max. ambient temperature (°C)
90 Oscillation frequency (1/min)
21500 Thread air intake (inches)
1/4 internal thread Thread air outlet (inches)
1/4 internal thread Type
GT 16 Usage
tank and silo technology Weight (kg)
0,607 Width (mm)
42 ø mounting holes (mm)
9
