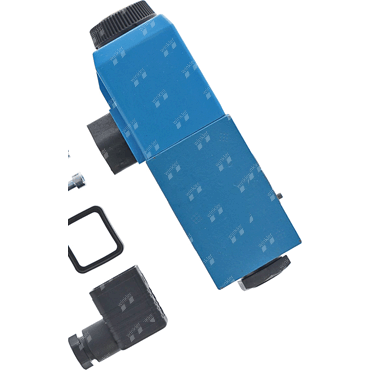

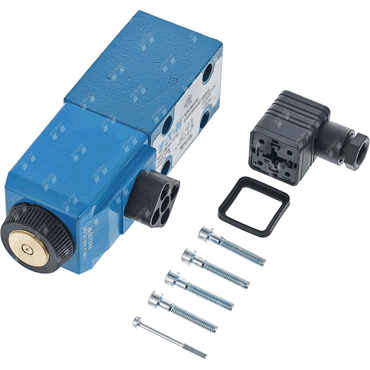

scope of delivery: valve with magnetic coil and seal set
Brand
other Degree of protection
IP65 jet water Electrical connection
DIN 43650 Form A Height (mm)
49,5 Length (mm)
156 Material
steel Max. flow rate (l/min)
60 Max. operating pressure (bar)
350 Max. operating pressure return flow (bar)
205 Nominal size
6 Power (W)
36 Standard ISO
4401 Status zero position
P T A B open Surface
Cr6-free galvanized Switch function

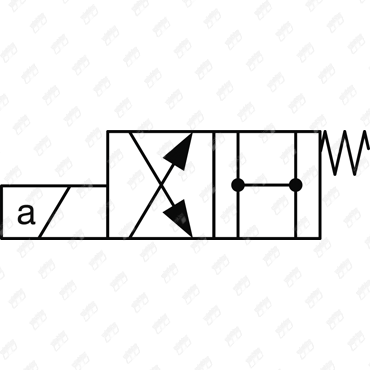

4/2-way Type
03 Voltage (V)
24 Weight (kg)
1,935 Width (mm)
46
