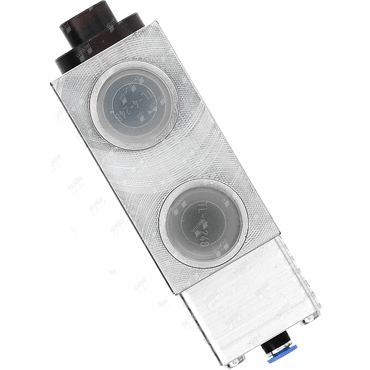

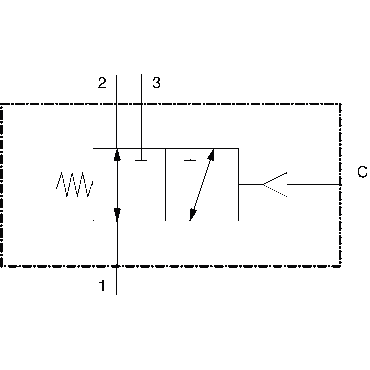

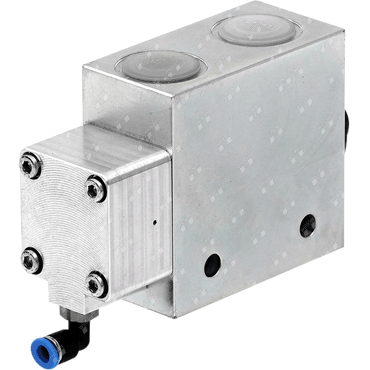

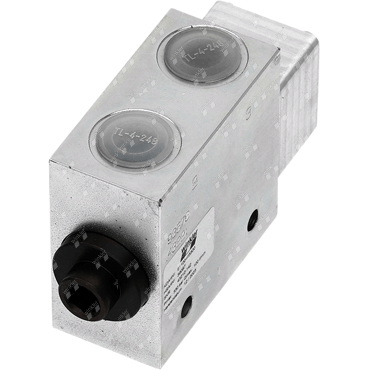

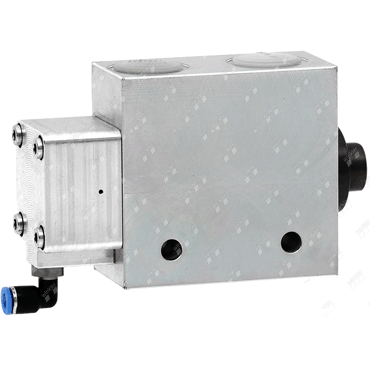

3/2 way valve with pneumatic control
Brand
winkler Connection pneumatic
push-in 6x1 Connection pressure input
G 3/4 inch internal thread Connection pressure output 1
G 3/4 inch internal thread Connection pressure output 2
G 3/4 inch internal thread Height (mm)
98,5 Info 1
switching only possible without pressure Length (mm)
138,5 Material
steel Max. flow rate (l/min)
100 Max. operating pressure (bar)
330 Max. pneumatic pressure (bar)
12 Weight (kg)
2,456 Width (mm)
45
