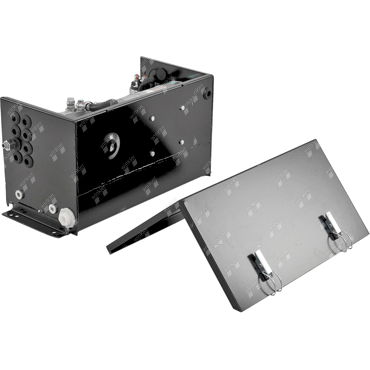

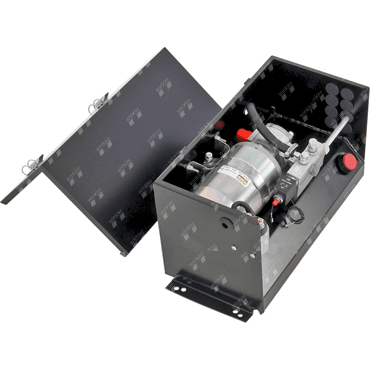

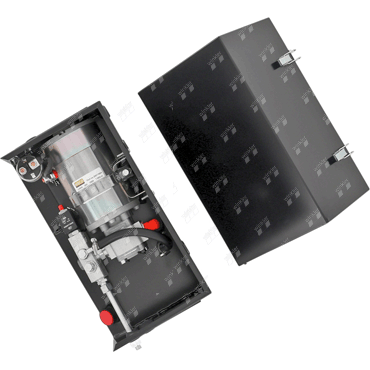

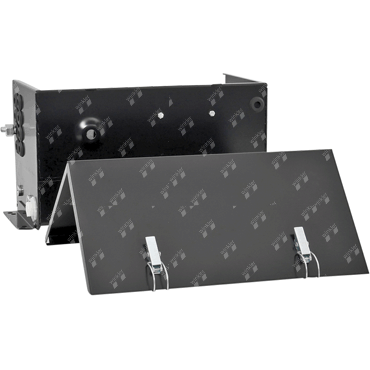

Motor-pump unit complete with tank installed in steel box. Direct mounting on the vehicle or trailer by means of L-profiles. A complete unit including pressure relief valve for all applications. Control unit is not included.
Brand
other Connection return flow
G 3/8 inch internal thread Container position
horizontal Delivery rate pump (cm³/r)
3,3 Height (mm)
230 Length (mm)
400 Material container
steel Max. pressure (bar)
220 Power (W)
3000 Power start relay (A)
100 Pressure connection
M 18x1.5 internal thread Pressure limit (bar)
170 Version valves
pressure limiting valvecheck valve
2/2 directional control valve
Voltage (V)
24 Volume container (l)
7 Weight (kg)
27,5 Width (mm)
256
