Further details for you

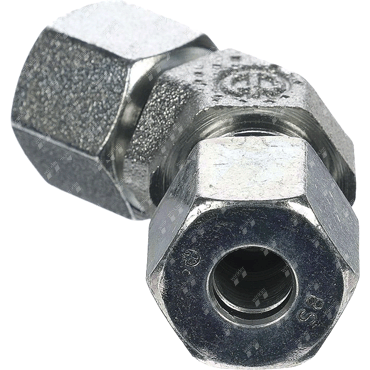

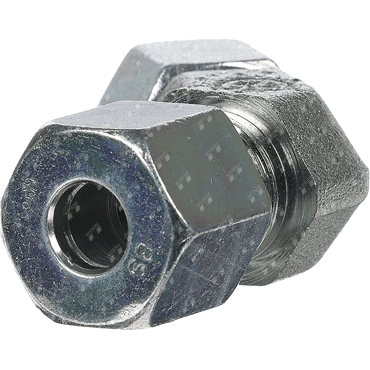

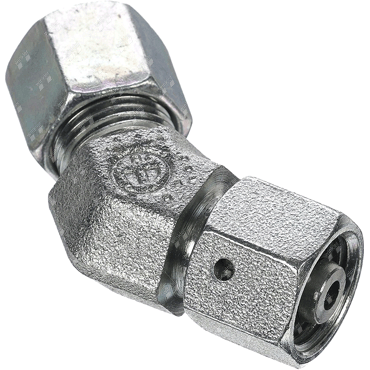

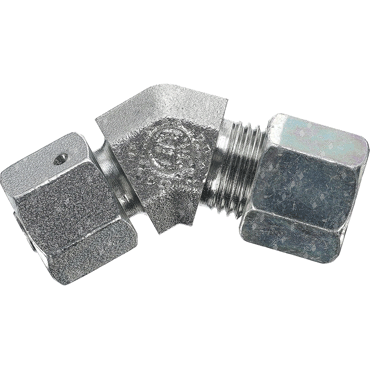

scope of delivery for complete screw connection: union, cutting ring and union nuts
Angle (°)
45 Brand
other For ø pipe A (mm)
8 For ø pipe B (mm)
8 Internal thread A metric
M 16x1,5 Material
steel Operating pressure (bar)
630 Sealing A
24° sealing cone with O-ring Sealing B
24° inner cone Standard DIN
2353 Standard ISO
8434-18434-4
Surface
Cr6-free galvanized Thread external B metric
M 16x1,5 Tube AD series
8 S Type
EV Weight (kg)
0,102 Width across flats body ES (mm)
19 Width across flats nut CH1 (mm)
19 Width across flats nut CH2 (mm)
19
