Armatures series
48 Brand
Parker Form connection

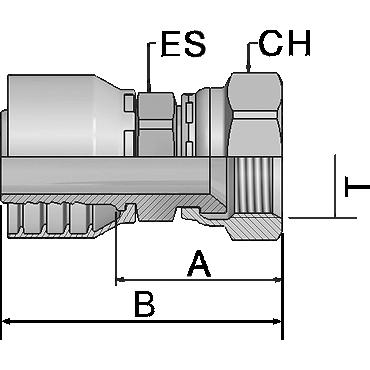

straight union nut Length A (mm)
36 Length B (mm)
59 Material
steel Nominal diameter hose (inches)
1/2 Nominal diameter hose (mm)
12 Operating pressure (bar)
345 Sealing
sealing cone 37°/SAE 45° Size
08 Surface
Cr6-free galvanized Thread internal T
JIC 7/8-14 Type
DKJ Usage hose type Parker
301SN421SN
426
436
441
451TC
471TC
472TC
493
811
881
Weight (kg)
0,134 Width across flats body ES (mm)
22 Width across flats nut CH (mm)
27 ø internal (mm)
12,7
