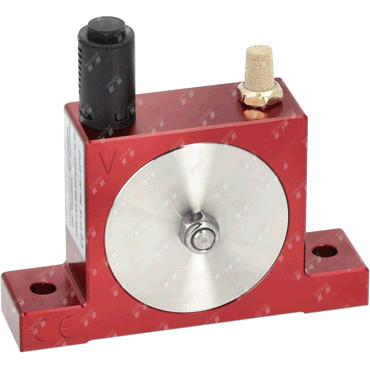

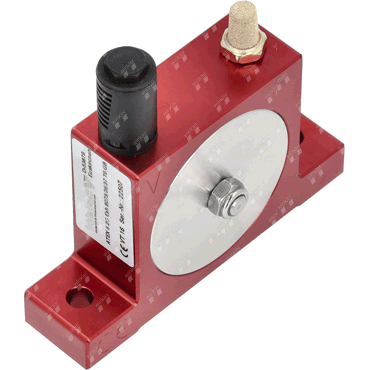

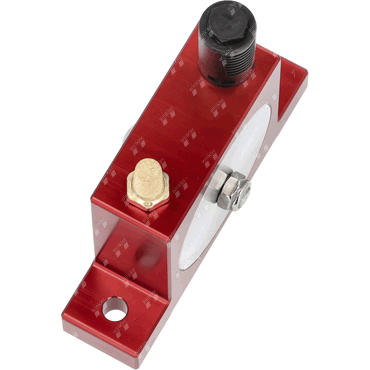

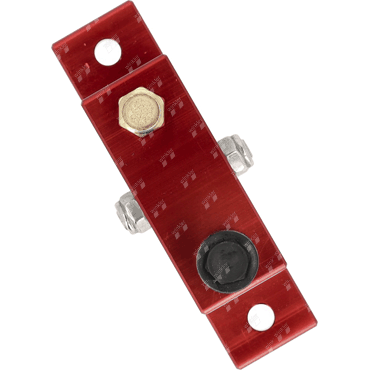

no lubrication required, can be used in all positions At about 70 dBA, it is one of the quietest pneumatic vibrators. Clean and oil-free compressed air (max. 6 bar) is required for long and trouble-free operation. Delivery includes hose nozzle for the compressed air connection and muffler. It is recommended to install a 20 μm oil filter upstream. The vibrator is designed to be explosion-proof.
Air flow (l/min)
225 Brand
Webac Centrifugal force (N)
4180 Height (mm)
80 Hole distance (mm)
104 Length (mm)
128 Max. ambient temperature (°C)
90 Oscillation frequency (1/min)
18500 Thread air intake (inches)
1/4 internal thread Thread air outlet (inches)
1/4 internal thread Type
VT 16 Usage
tank and silo technology Weight (kg)
0,85 Width (mm)
49 ø mounting holes (mm)
9
